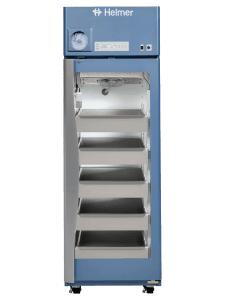

HBR113-GX
Horizon Series™ Blood Bank Refrigerator
The HBR113-GX Blood Bank Refrigerator safely stores blood products at 4°C. Essential alarm functionality provides continuous monitoring. This GX Solutions upright refrigerator model features a slim profile and compact footprint, making it ideal for smaller spaces. Innovative OptiCool™ technology offers energy savings, quiet operation, and low heat output, in addition to the excellent temperature uniformity and recovery that are critical for blood storage.
Details
Designed to safely store blood and blood components within an exceptional temperature-controlled environment.
- OptiCool™ technology pairs a variable capacity compressor (VCC) and natural hydrocarbon refrigerants to ensure optimal temperature uniformity, recovery and stability, efficiently manage energy consumption and meet evolving environmental regulations

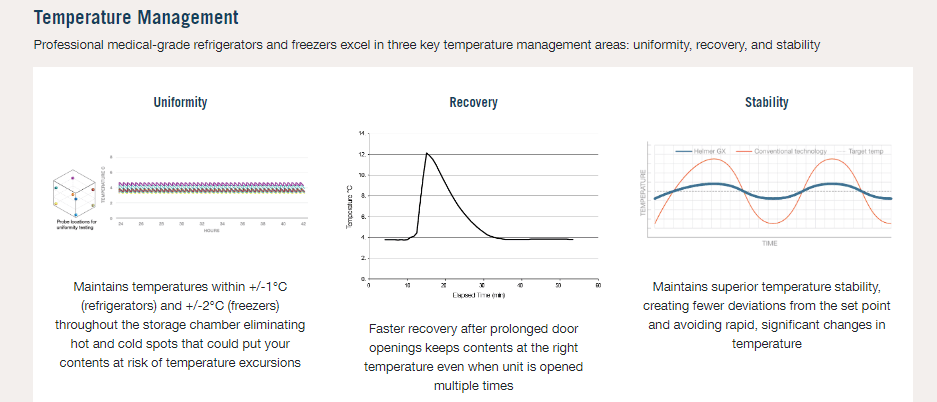

- Optimized temperature uniformity, recovery and stability create best environment for blood storage
- Reduced energy consumption (50-65% more efficient than traditional technology)
- U.S. Environmental Protection Agency SNAP (Significant New Alternatives Policy) compliant refrigerants
- Quiet operation (42 dB) creates fewer distractions and better working environment
- Digital microprocessor temperature controller with built-in alarms, includes min/max display and reset
- Cabinet built with high-quality construction meets or exceeds performance standards required by the medical and scientific industries
- Adjustable, liquid-tight drawers for containment of spills
- Rear access port
- Energy Star® certified
specifications
Bag Capacity
198 Blood Bags
Interior Volume
13.3 cu ft | 377 L
Temperature Range | Set Point
+2°C to +10°C | +4°C
Interior Dimensions (w x h x d)
20 x 49.4 x 22.9 in
508 x 1255.5 x 583.2 mm
Exterior Cabinet Dimensions (w x h x d)
24.8 x 70.5 x 26.1 in
628 x 1790 x 663 mm
Overall Exterior Dimensions (wxhxd)
24.9 x 70.5 x 31.2 in
631 x 1790 x 792 mm
Electrical
115V 60Hz | 220-230V 50-60Hz
Net Weight
337 lb | 153 kg
Storage
5 Liquid-Tight, Solid Drawers
Display
Horizon LED Alarm/Monitor
Noise Emission
39 dB
Energy Efficiency
1.2 kWh/day
Certifications/Regulatory Approvals
QPS (Certified to UL and CSA Standards)
IEC/UL61010-2-011 (Dec 2016)
CE 2797
RoHS
